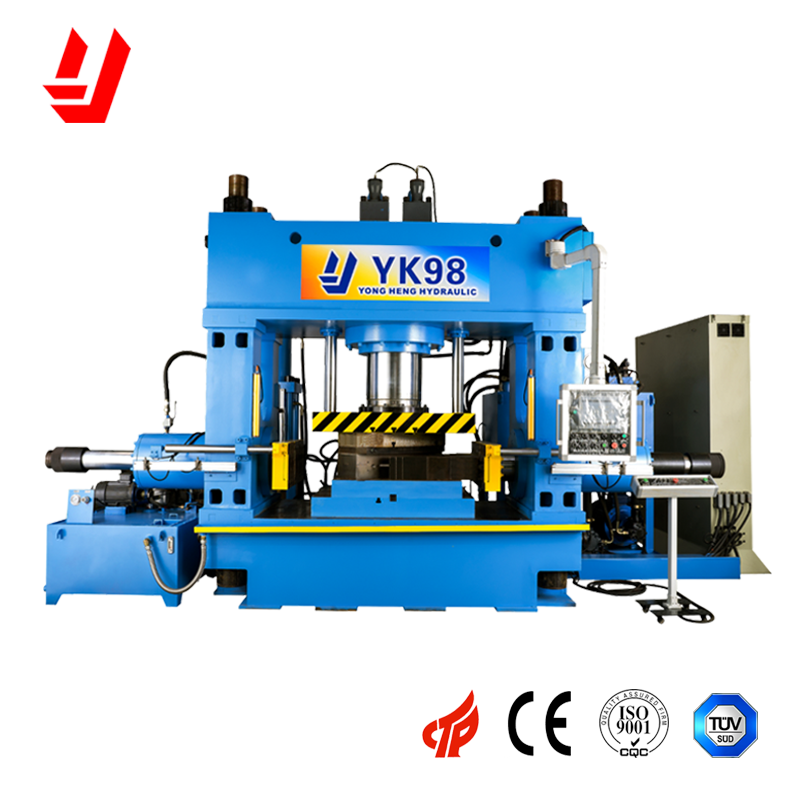

Yongheng Hydraulic High Production Servo Control Metal Pipe Fittings Hydroforming Machine
YH98 Series High Production Servo Control Metal Pipe Fittings Hydroforming Machineis used for forming the part with complex surface.Can be used for the hydraulic bulging process of vacuum cup,thermos bottle,water bottle and other tableware and containers made of stainless steel,copper,aluminum,iron and other materials.
|
Model No |
YK98-32W |
YK98-32D |
YK98-108W |
YK98-108D |
||||
|
Machine Structure |
Main single cylinder Three beam Four column |
Main single cylinder Three beam Three column |
Main single cylinder Frame with cloumn |
Main single cylinder Three beam Three column |
||||
|
Side Cylinder Quantity |
Three cylinders（option） |
Two cylinders |
Three cylinders（option） |
Two cylinders |
||||
|
Forming Pressure |
60 Mpa |
60 Mpa |
||||||
|
Product Range |
Pipe structure |
Single clamping, double clamping, VII clamping, Ring clamping, Tooth ring clamping press |
||||||
|
Pipe Dia |
DN15-DN32(including DN32) |
DN15-DN100(including DN108) |
||||||
|
Material |
Stainless steel, carbon steel, red copper and other metal materials; |
|||||||
|
Production capacity |
1 cavity for 1 mold（1 pc for one stroke）
|
|
||||||
|
Forming Product Structure |
Straight pipe, Tee pipe fittings, 90° elbow pipe |
45° elbow pipe |
Straight pipe, Tee pipe fittings, 90° elbow pipe |
45° elbow pipe |
||||
|
Production Efficiency |
6-9s/time |
8-15s/time |
||||||
|
Machine Size（appr.） |
Left-right |
2400 |
5500 |
4800 |
||||
|
Front-back |
2500 |
3000 |
4500 |
|||||
|
Height |
2900 |
3300 |
3500 |
|||||
|
Total Power |
41.5KW |
175 KW |
||||||
|
Power Supply |
380±10V/50Hz |
380±10V/50Hz |
||||||
The main performance, characteristics and uses of standard machines:
1、Prestressed to the main body of machine for reducing the deformation when both side cylinders are moving forward;
2、Considering relationship of the multi-cavity mold and tube diameter, it can realize: the minimum of working table, the minimum of main cylinder clamping force and the working force of side cylinder, the minimum of energy consumption and the maximum of productivity and efficiency;
3. Suitable for products’ diversified structure: single clamping press, double clamping press, VII clamping press, Ring clamping press, Tooth ring clamping press;
4, Adapt to the diversity of materials: stainless steel, carbon steel, red copper and other metal materials;
5, Forming product structure: Straight pipe, Tee pipe fittings, 90° elbow pipe at the same machine.
6, Forming product specifications:
(1) Pipe diameter below 32mm: One mold with ten cavities (Ten pieces for one stroke);
(2) Pipe diameter from 32mm to 65mm below: One mold with four cavities (Four pieces for one stroke);
(3) Pipe diameter from 65mm to 100mm below: One mold with two cavities (Two pieces for one stroke);
7, For small products-pipe diameter below 65mm, it can use a mold multi-cavity with multi-specification according to the capacity needs ;
8, The energy consumption cost of a single part is lower than the cost of traditional forming.
