Yongheng Hydraulic YK98-32W Stainless Steel Pipe Fittings Water Bulging Press Hydroforming Machine Manufacturer

YK98-32W

Quantity

Contact Now

add to cart

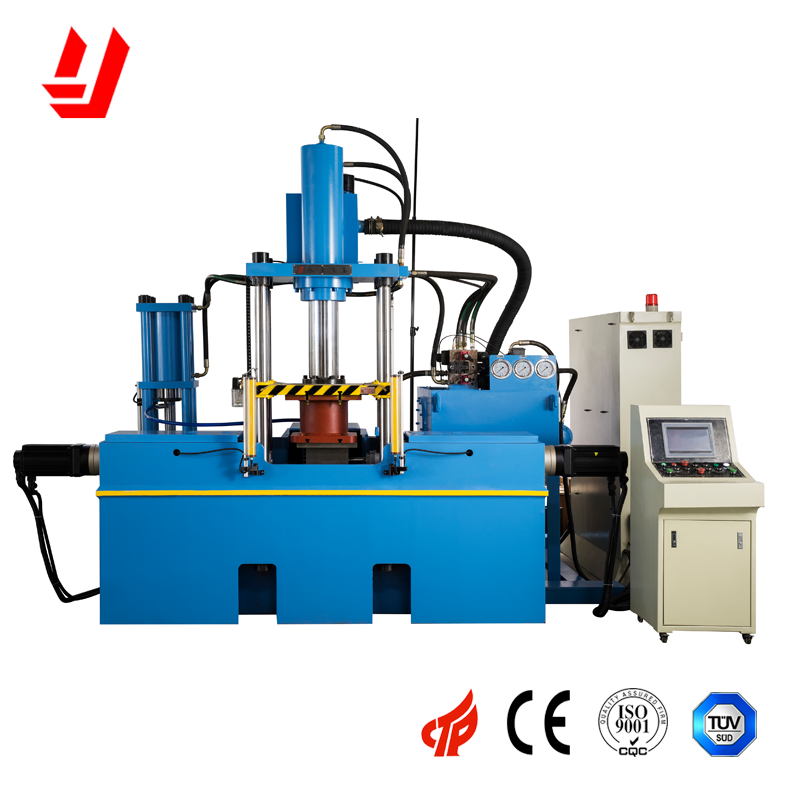

Yongheng Hydraulic YK98-32W Stainless Steel Pipe Fittings Water Bulging Press Hydroforming Machine Manufacturer

Yongheng Hydraulic is one of the most professional hydroforming machine manufacturer for more than 30 Years. YK98 Series Inner High Pressure Hydroforming Machine is our New Developed With High Technology Machines Series.One stroke with 10pieces output.Pipe Fittings Hydroforming Machine is suitable for difference kinds of pipe fittings water bulging.

The main performance, characteristics and uses of Stainless Steel Pipe Fittings Water Bulging Press Pipe Fittings Hydroforming Machine:

1、Pipe Fittings Hydroforming Machine is prestressed to the main body of machine for reducing the deformation when both side cylinders are moving forward;

2、Considering relationship of the multi-cavity mold and tube diameter for Pipe Fittings Hydroforming Machine, it can realize: the minimum of working table, the minimum of main cylinder clamping force and the working force of side cylinder, the minimum of energy consumption and the maximum of productivity and efficiency;

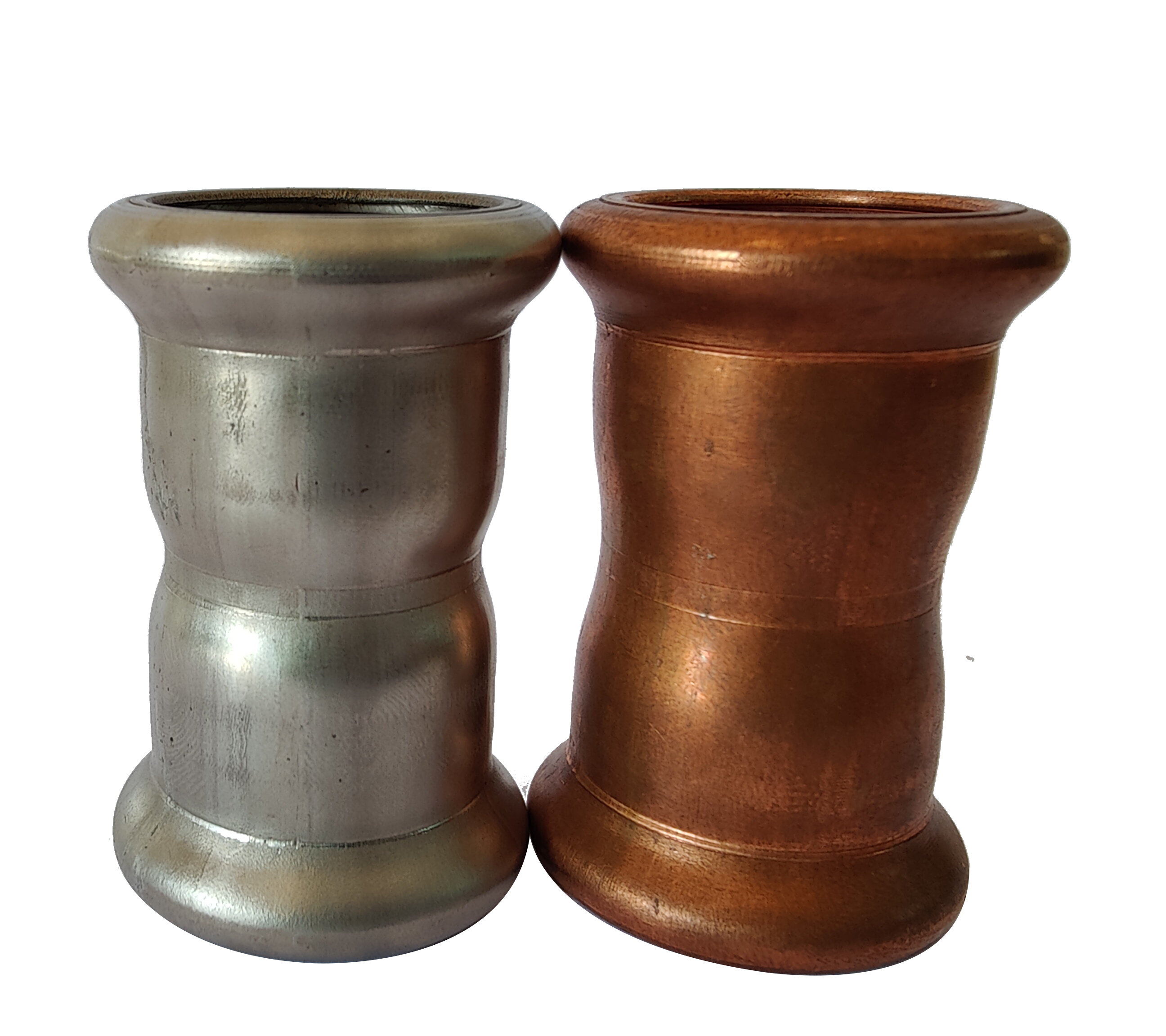

3、Pipe Fittings Hydroforming Machine is suitable for products’ diversified structure: single clamping press, double clamping press, VII clamping press, Ring clamping press, Tooth ring clamping press;

4, Pipe Fittings Hydroforming Machine adapt to the diversity of materials: stainless steel, carbon steel, red copper and other metal materials;

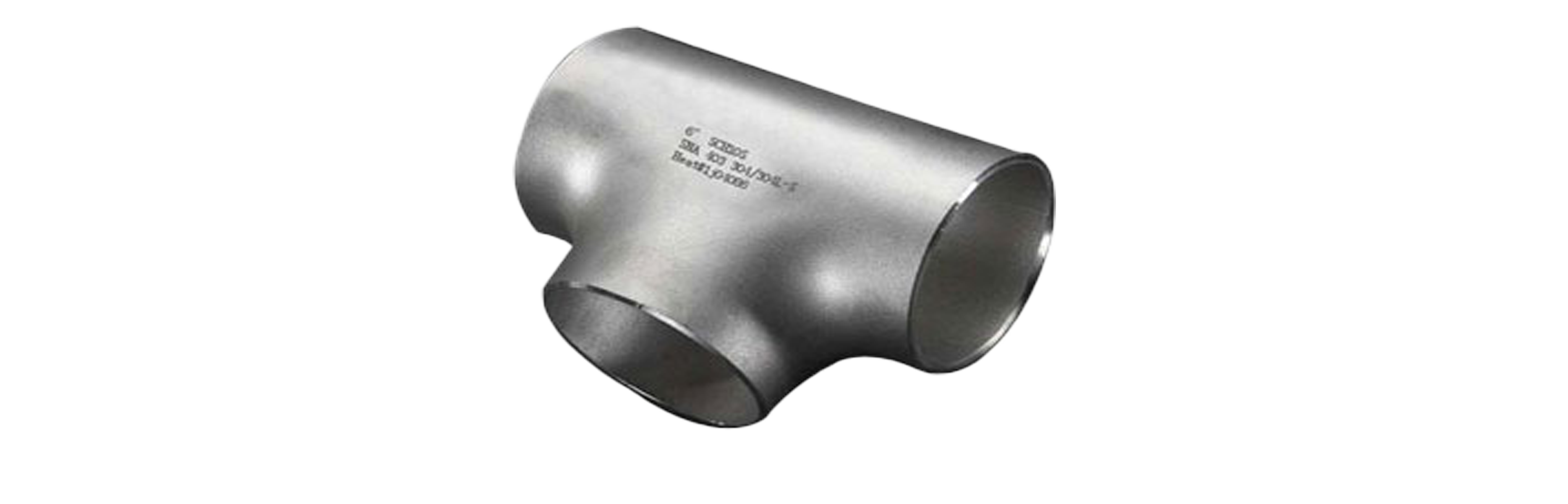

5, Forming product structure of Pipe Fittings Hydroforming Machine: Straight pipe, Tee pipe fittings, 90° elbow pipe at the same machine.

6, The energy consumption cost of a single part is lower than the cost of traditional forming for Pipe Fittings Hydroforming Machine.

Machine Specifications Of Stainless Steel Pipe Fittings Water Bulging Press:

Model No		YK98-32W Pipe Fittings Hydroforming Machine		YK98-32D Pipe Fittings Hydroforming Machine		YK98-118W Pipe Fittings Hydroforming Machine	YK98-118D Pipe Fittings Hydroforming Machine
Machine Structure		Main single cylinder Three beam Four column		Main single cylinder Three beam Three column		Main single cylinder Frame with cloumn	Main single cylinder Three beam Three column
Side Cylinder Quantity		Three cylinders（option）		Two cylinders		Three cylinders（option）	Two cylinders
Forming Pressure		60 Mpa				60 Mpa
Product Range		Pipe Dia	DN15-DN32(including DN32)			DN15-DN118(including DN118)
		Pipe structure	Single clamping, double clamping, VII clamping, Ring clamping, Tooth ring clamping press			Single clamping, double clamping, VII clamping, Ring clamping, Tooth ring clamping press
		Material	Stainless steel, carbon steel, red copper and other metal materials;			Stainless steel, carbon steel, red copper and other metal materials;
		Production capacity	1 cavity for 1 mold（1 pc for one stroke） It can realize the equal diameter skeleton punching of small tube Small diameter which is same diameter of three-way clamping tube forming			Pipe diameter below 32mm: 1 mold with 10 cavities (10pcs for one stroke); Pipe diameter from 32mm to 65mm below: 1 mold with 4 cavities Pipe diameter from 65mm to 100mm below: 1 mold with 2 cavities Pipe diameter below 65mm, we can minimize the mold cost: it can use a multi-cavity mold with multi-specification according to the capacity needs
Forming Product Structure		Straight pipe, Tee pipe fittings, 90° elbow pipe			45° elbow pipe	Straight pipe, Tee pipe fittings, 90° elbow pipe			45° elbow pipe
Production Efficiency		7-10s/time				8-12s/time
Total Power		41.5KW				175 KW
Power Supply		380±10V/50Hz				380±10V/50Hz
Machine Size（appr.）	Left-right	2400				5500		4800
	Front-back	2500				3000		4500
	Height	2900				3300		3500

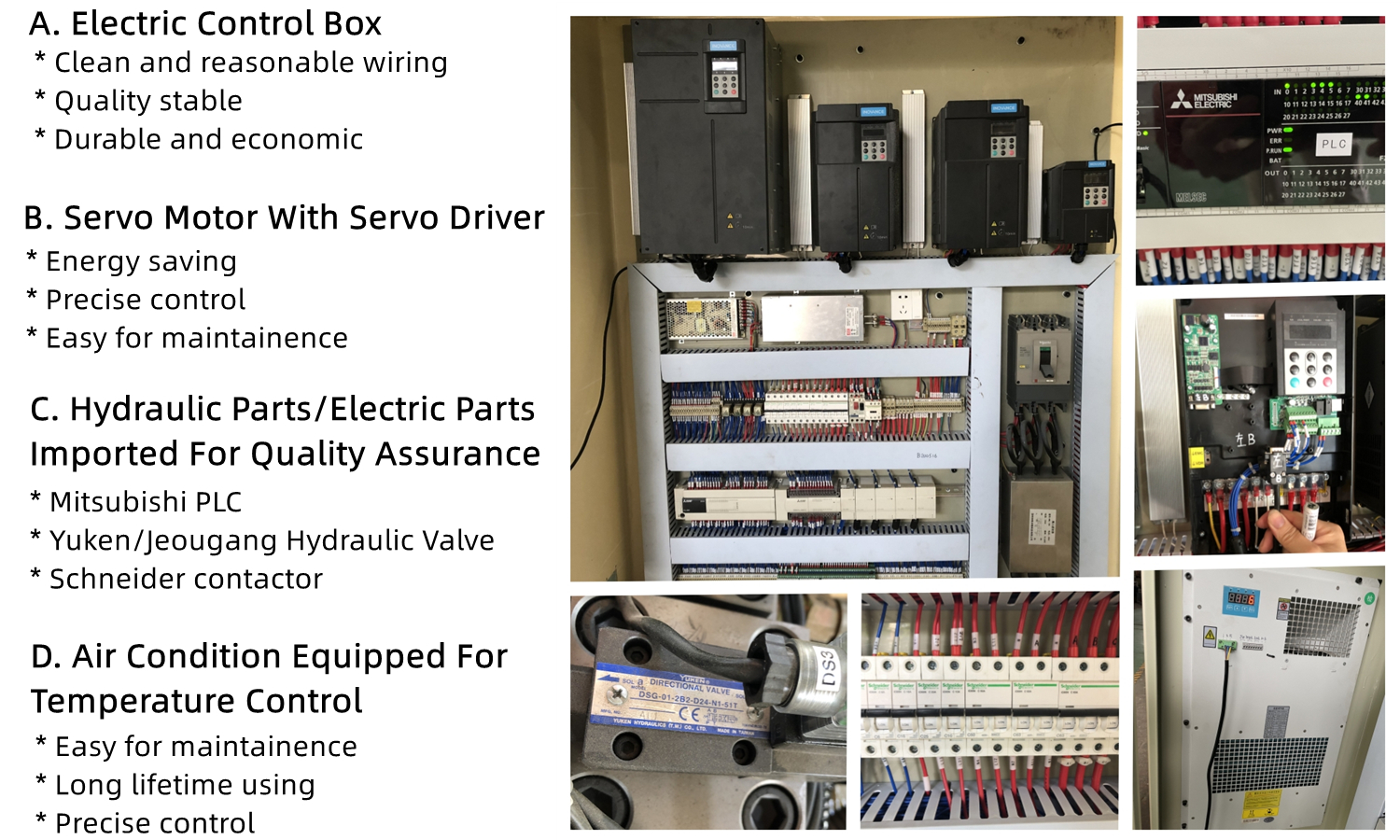

Machine Configuration Of Stainless Steel Pipe Fittings Water Bulging Press:

Cooperation Customers :

Our Factory Profile:

Our Team:

Our Export Standard Package:

Our Service:

Welcome To Inquiry Us!

May Ho:86-13927283041(what's app/wechat)
