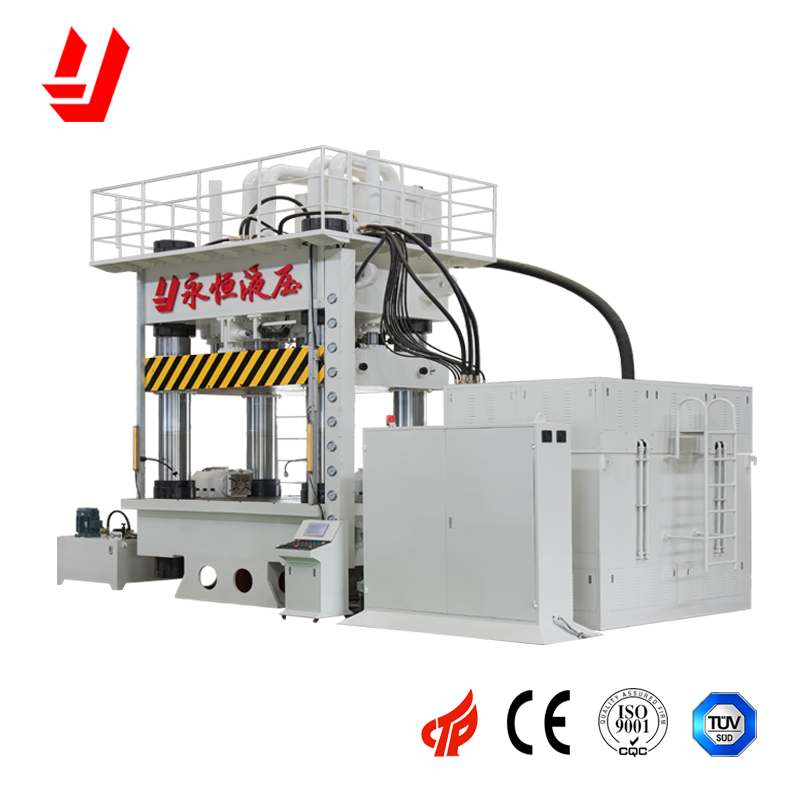

Yongheng Hydraulic Y98 Four Column Servo Control Spiral Pipe Hydroforming Bellows Machine

Yongheng Hydraulic Y98  Four Column Servo Control Spiral Pipe Hydroforming Bellows Machine

Yongheng Hydraulic is one of the most professional hydroforming machine manufacturer for more than 30 Years. Y98 Series High Speed Hydroforming Machine is our New Developed With High Technology Machines. Hydroforming Machine For Sale is suitable for difference kinds of steel pipe hydroforming.

The main performance, characteristics and uses of Hydroforming Bellows Machine:

1、Hydroforming Press Machine is prestressed to the main body of machine for reducing the deformation when both side cylinders are moving forward;

2、Considering relationship of the multi-cavity mold and tube diameter for Hydroforming Bellows Machine , it can realize: the minimum of working table, the minimum of main cylinder clamping force and the working force of side cylinder, the minimum of energy consumption and the maximum of productivity and efficiency;

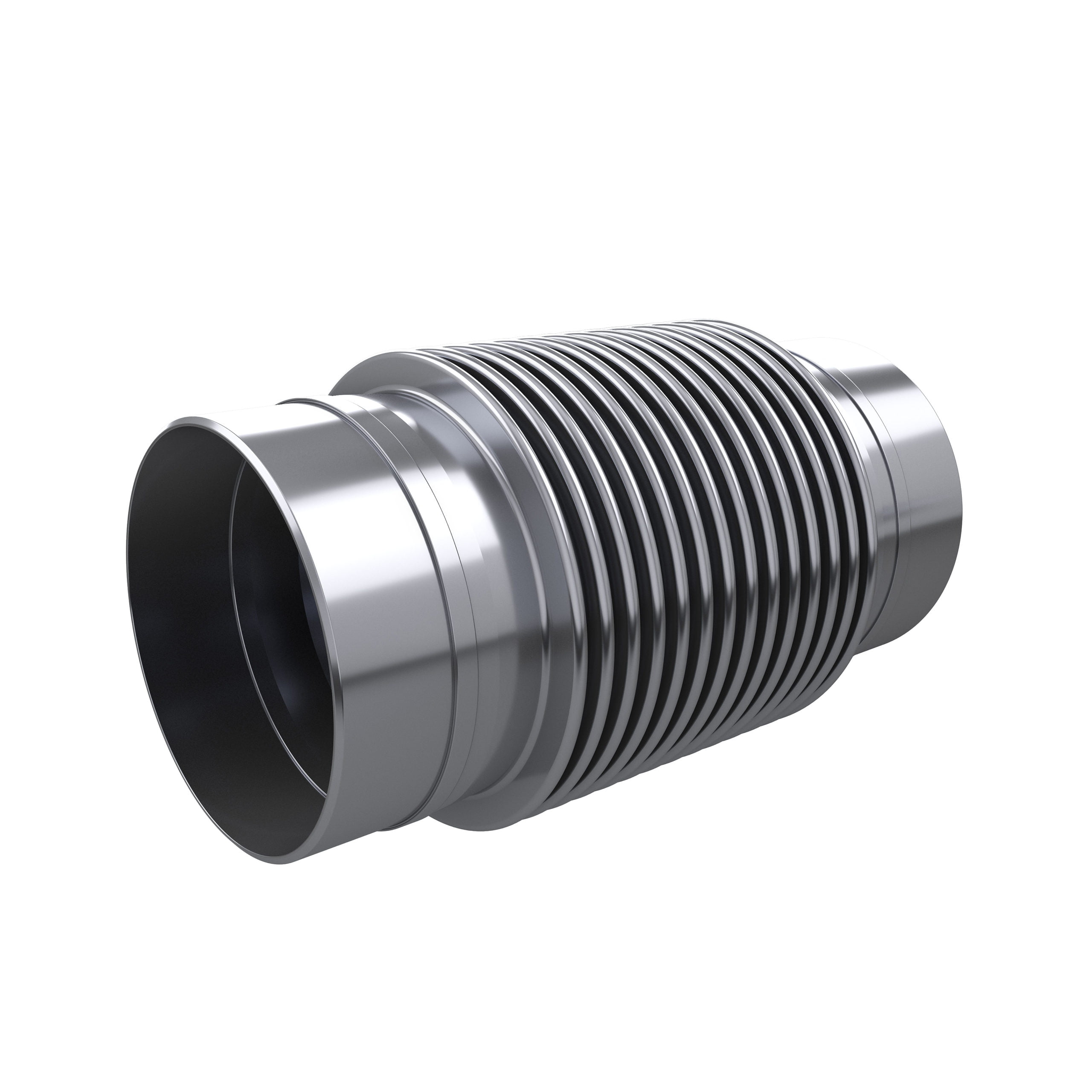

 3、Hydroforming Bellows Machine issuitable for the discharge pipe of automobile,bath fitting and spare part of Automobile and motorcycle.

4,Hydroforming Bellows Machine adapt to the diversity of materials: stainless steel, carbon steel, red copper and other metal materials;

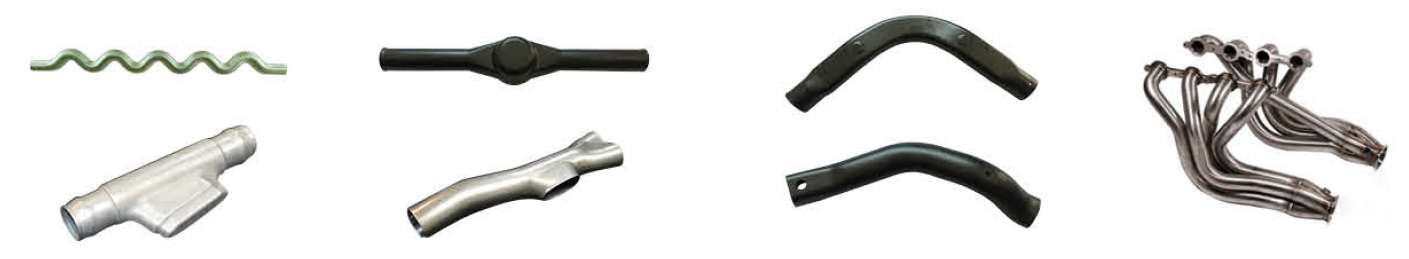

5, Forming product structure of High Speed Hydroforming Machine: Straight pipe, Tee pipe fittings, 90° elbow pipe at the same machine.

6, The energy consumption cost of a single part is lower than the cost of traditional forming for High Speed Hydroforming Machine.
